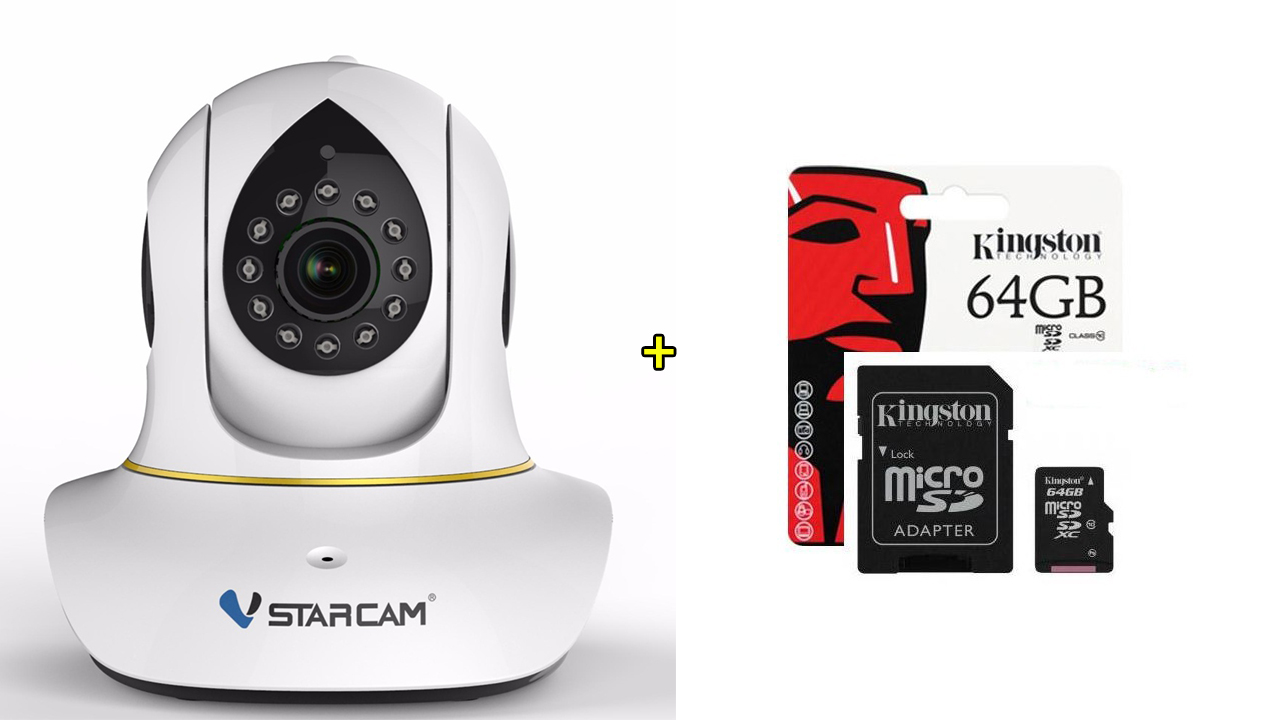

กล้องไอพี Vstarcam C38S 64GB ความชัด 2ล้าน pixel ระบบการทำงานจัดเต็มสูงสุด

Model No.C38S

System

OS

Embedded Linux OS

system security

Three user authority management

online users

support 4 visitors simultaneously

Processor

Hi 3518E V200

Collection

Image sensor

1/3 inch 1080P, line by line scan CMOS sensor（Ov2710)

CMOS

support AWB, AGC, BLC

CMOS Size

3.84mm*2.16mm

SNR

≥39dB

Minimum illumination

0.8Lux/F2.1（colourful model ）,0.3Lux/F2.1（B&W mode）

Lens/viewing angle

4mm@F1.4/107.7°

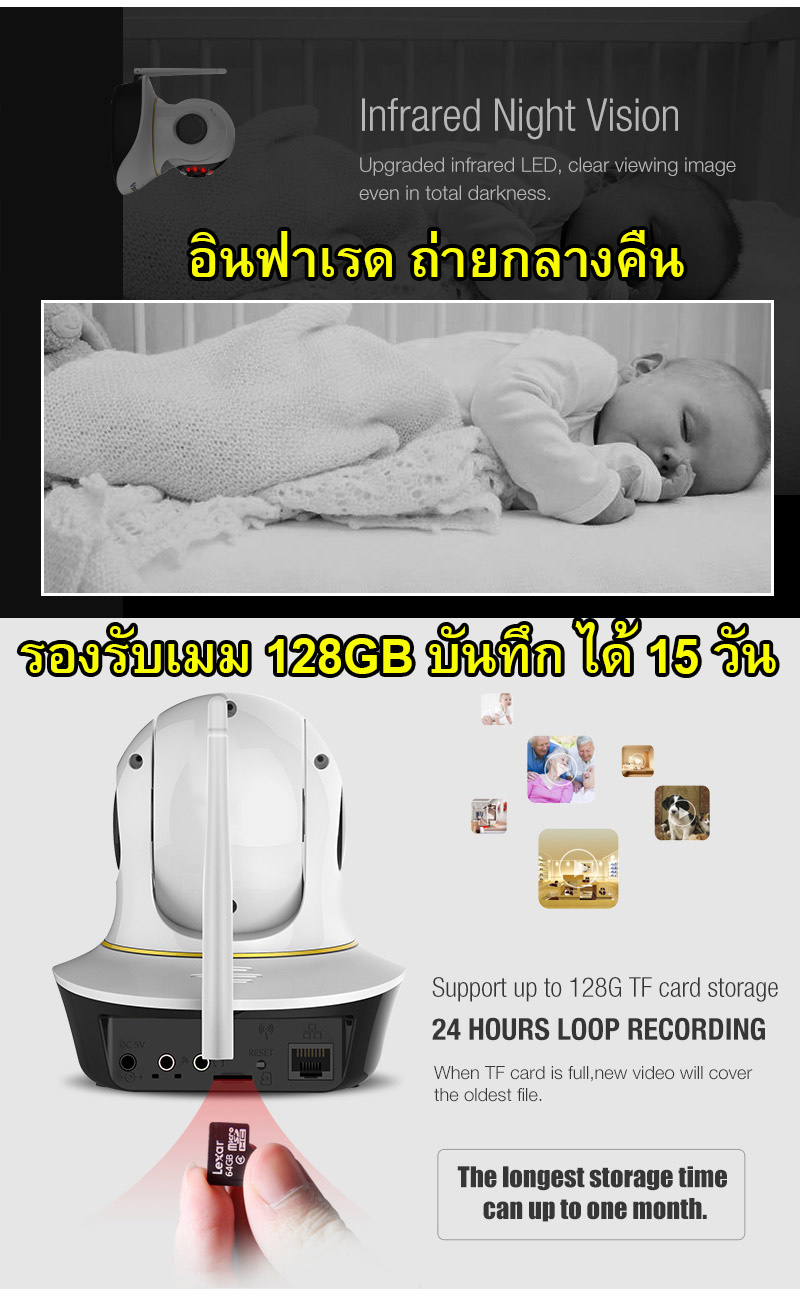

Night vision

Dual IR-CUT filter auto switch,12pcs 850nmΦ5mm LED,10m IR distance

IR control

IR turned on: night vision enabled, infrared Ray, ICR auto detect.                                                                   IR turned off: night vision disabled, infrared ray off, ICR stay in daytime view mode.

Video

Compression Format

H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline

Video coding process

Multi-stream：1080P/15fps+360P/15fps+QVGA/15fps @1fsJPEG  snapshot

Resolution

1080p/360P/QVGA

Bit Rate

CBR/VBR, output bit rate range：128～4096kbps

Frame rate

15fps

Picture Adjustment

Contrast, brightness, saturation, chroma are adjustable.

Audio

Output

Built-in speaker(8Ω1W)

Sampling frequency / width

8KHz/16bit

Compression format

ADPCM/32kbps

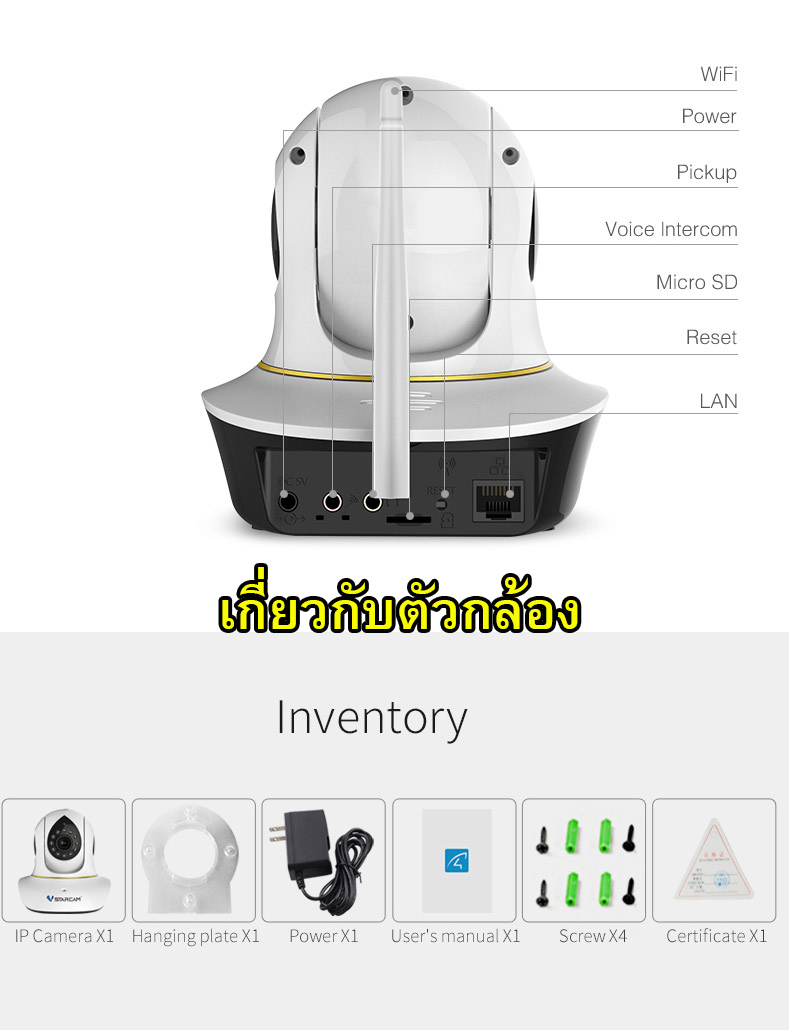

Network

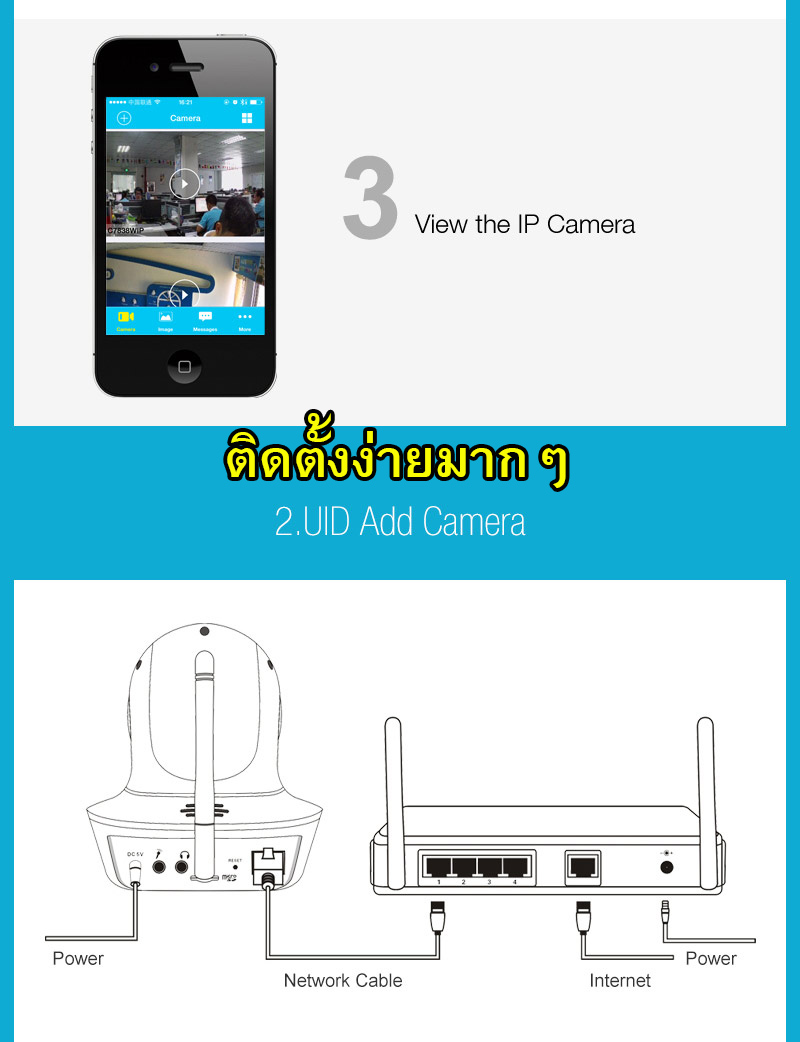

Interface

10Base-T / 100Base-TX / RJ45 connector

Network Protocol

TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc.

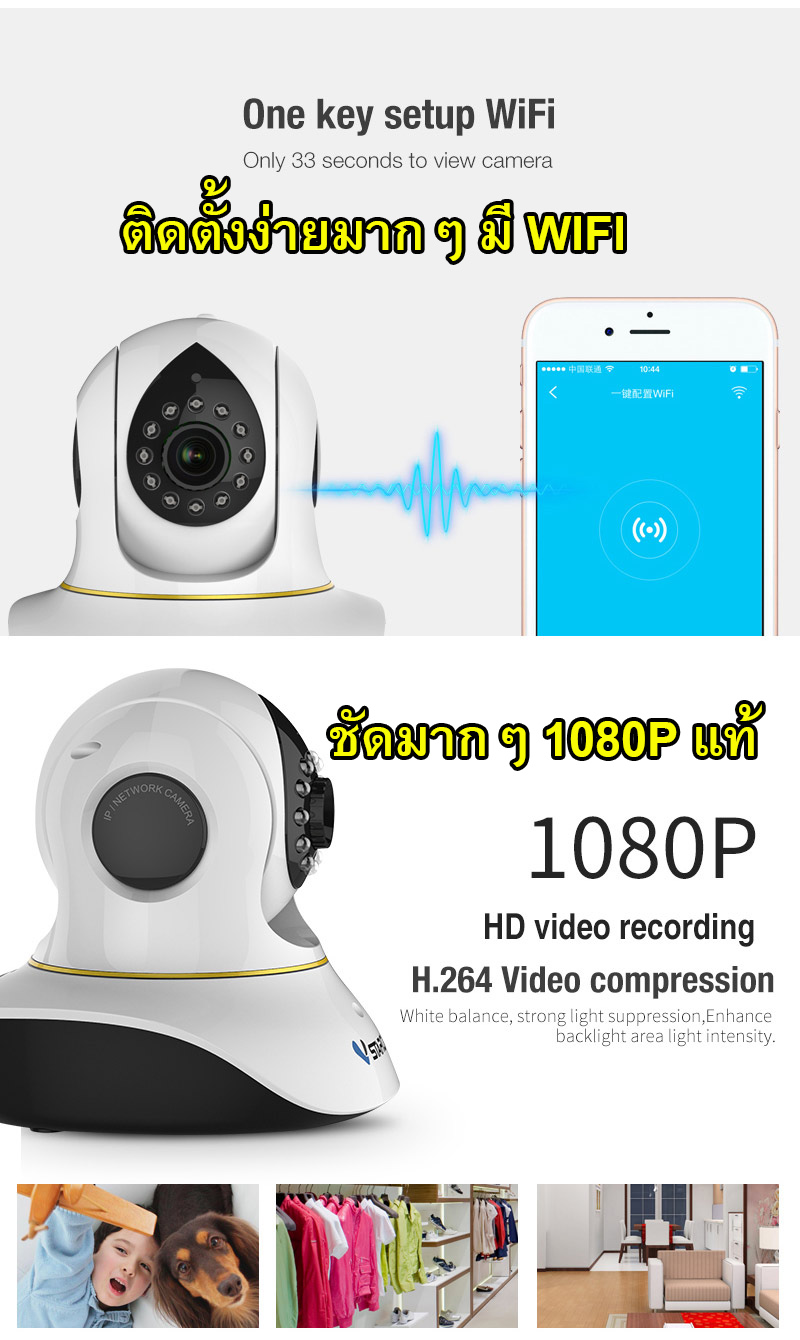

WIFI

WiFi802.11b/g/n

Wi-Fi Security

Wi-Fi Protected Setup

Communication

UART

Serial communication

storage

Storage mode

Local storage / SD Card (support up to 128G)

Interface

Micro SD

Pan-Tilt

P/T

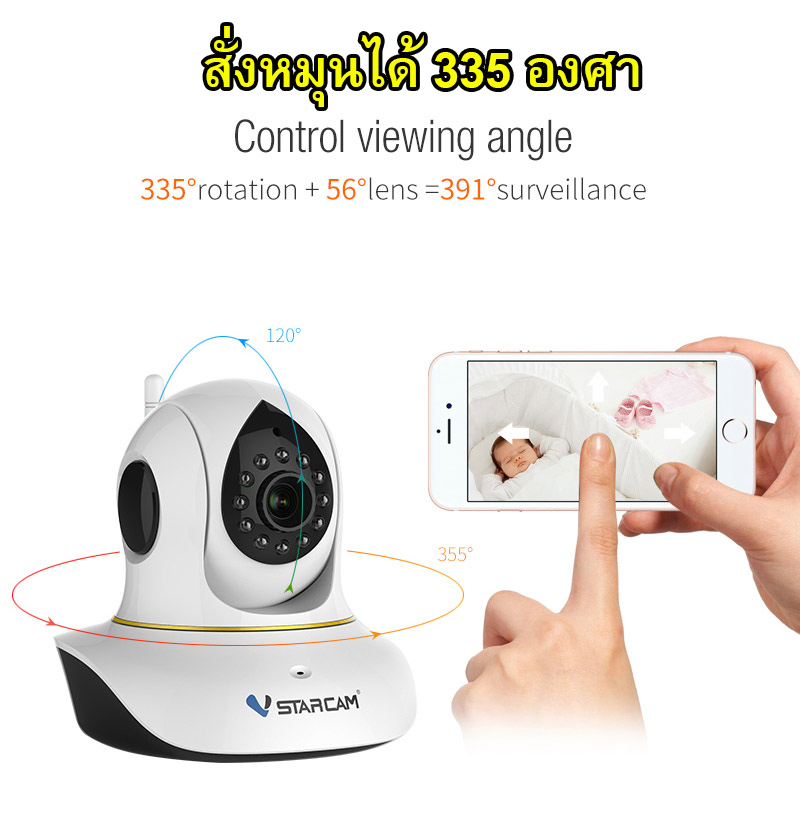

Pan: 355° Tilt: 120°

Preset Postion

PC:support up to 16  preset postions,   Phone: 5 preset positions

Alarm

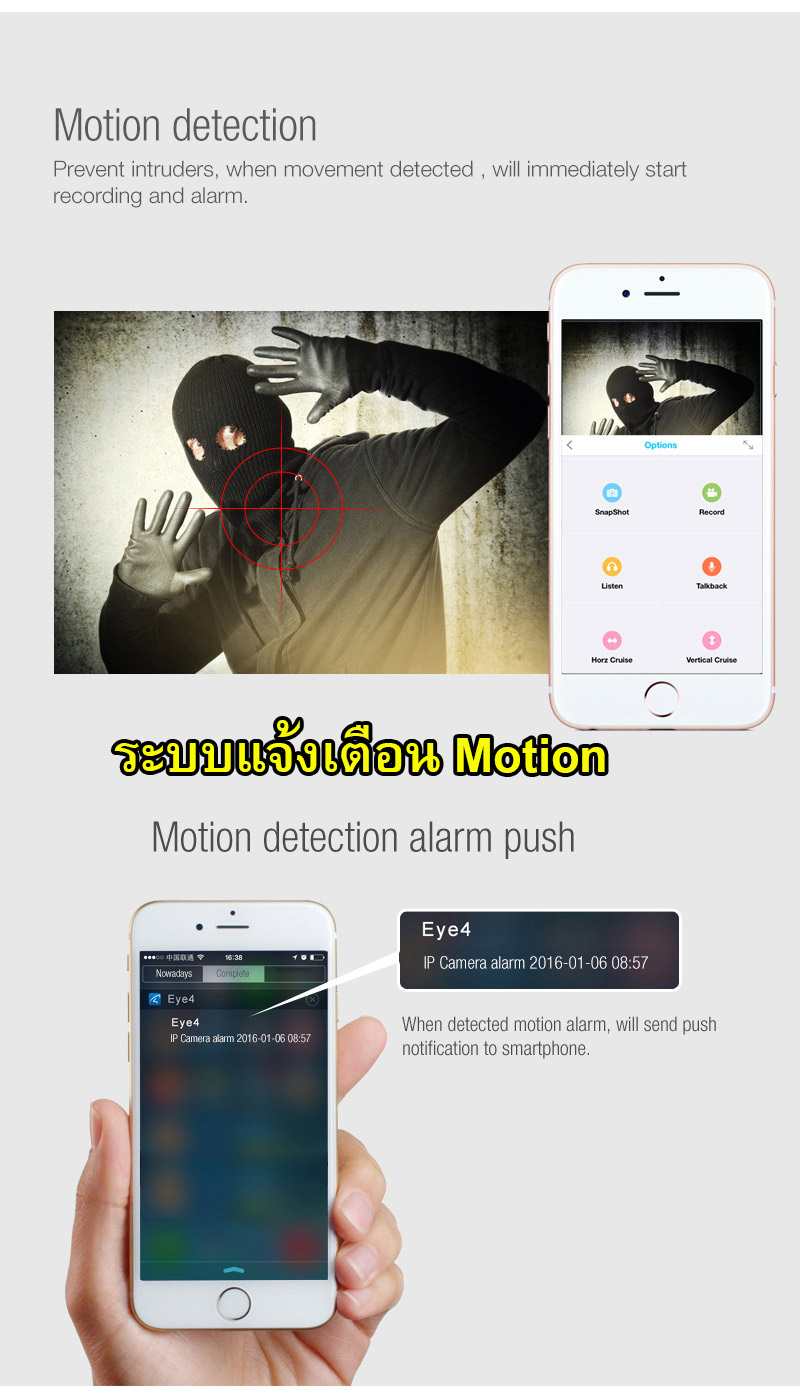

Motion detection

Support motion detection

Physical index

Rated Voltage

DC 5V/2A±0.3V

Power comsumption

Rated power：3.5w(IR ON),  Maximum Power：7W （Pan-tilt ON）

Working environment

Working Temperature：-10～50℃，Working Humidity ＜90%

Weight

Gross Weight ：605g （Note: in kind prevail）

Housing material

ABS plastics

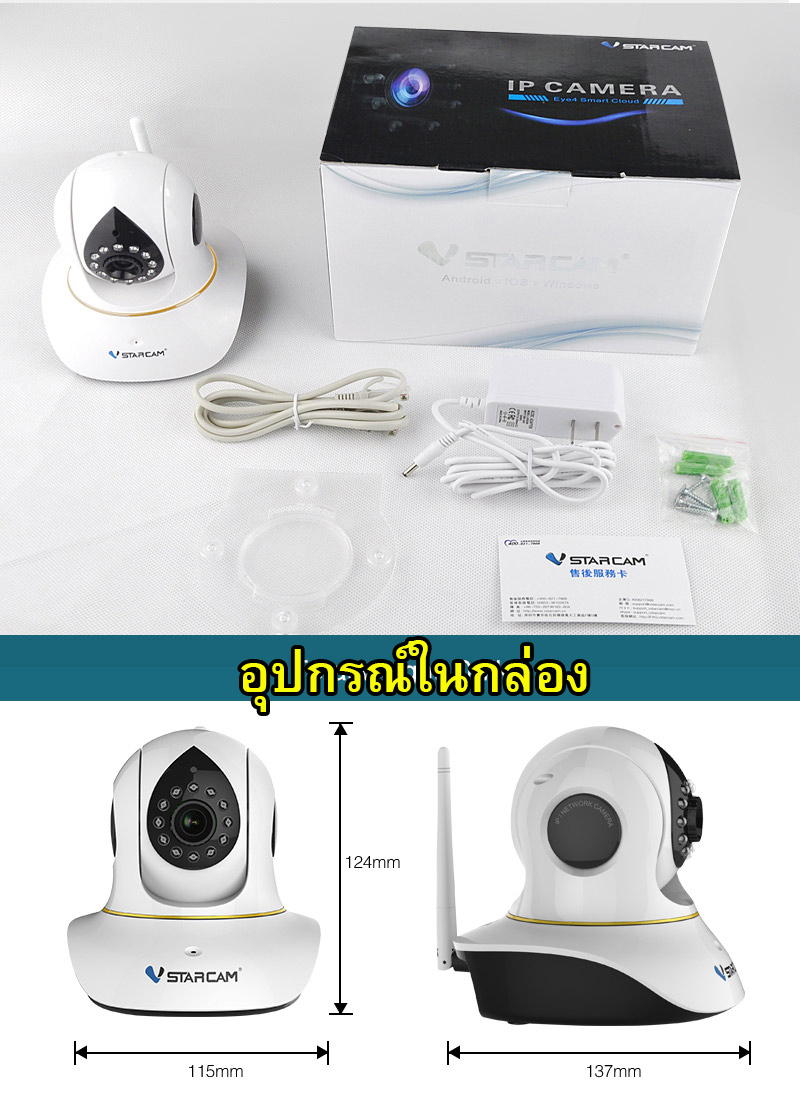

Camera size

208x154x137mm (L×W×H)
