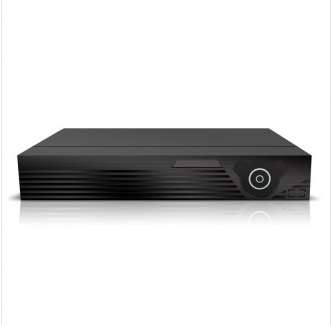

VSTARCAM N160 เครื่องบันทึกรุ่น 16ช่อง โฉมใหม่

Modle

N160

Chipset

Hi3535

RAM

512MB DDR3

OS

Embedded Linux

Video&Audio input

Bidirectional Talk

1CH，BNC(Line in,2Vpp,1Kohms)

IPC Input

96Mbps

16CH

Video&Audio output

CVBS

1CH,BNC（1.0Vp-p,75ohms）

VGA

1CH,Resolution 1920x1080,1280×1024,1280×720,1024×768

HDMI

Standard 1.3a

1CH,Resolution 1920x1080,1280×1024,1280×720,1024×768

Audio Output

1CH,BNC(Line out,2Vpp,300ohms)

Video&Audio encoding

Audio Compression

G.711A

Audio Bit Rate

64Kbps

Video&Audio decoding

IP Resolution

Main stream:up to 5632x4224
Auxiliary stream:D1

Video bitrate

Up to 2Mbps@D1,4Mbps@720P,8Mbps@1080P

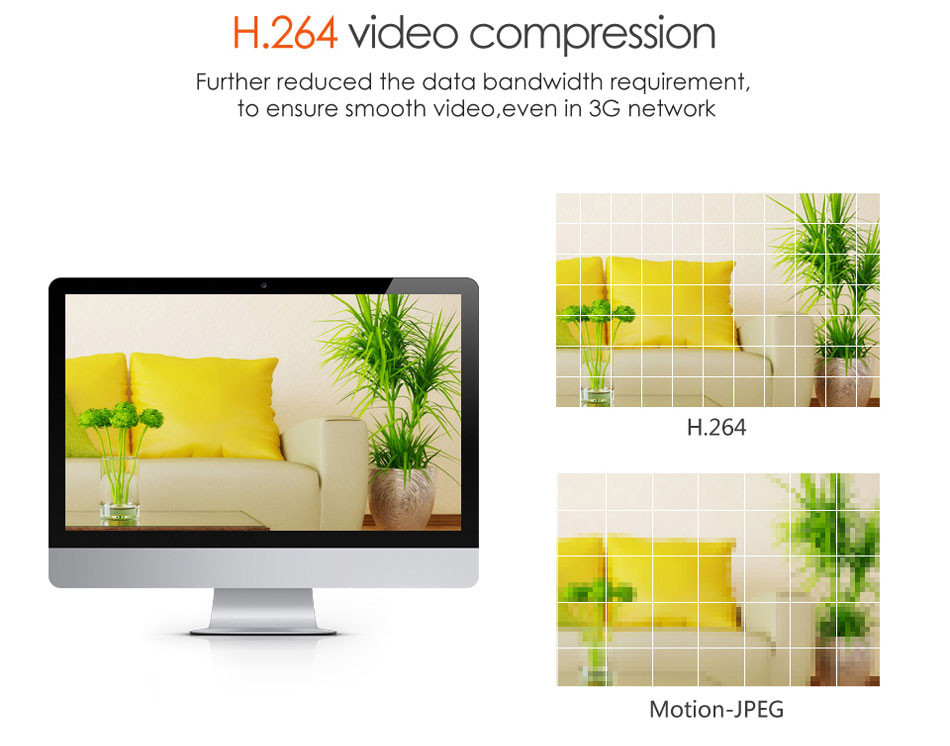

Video decoding

MPEG-4/H.264(Up to High Profile@Level5.0）

Synchronous Playback

Up to 16CH

Decoding Ability

Up to 13CH 720P@30 or 6CH 1080P@30

Other Function

Bidirectional Talk

Two-way voice intercom function

Motion Detection

Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)

Picture Capture

Local Capture&Web Capture

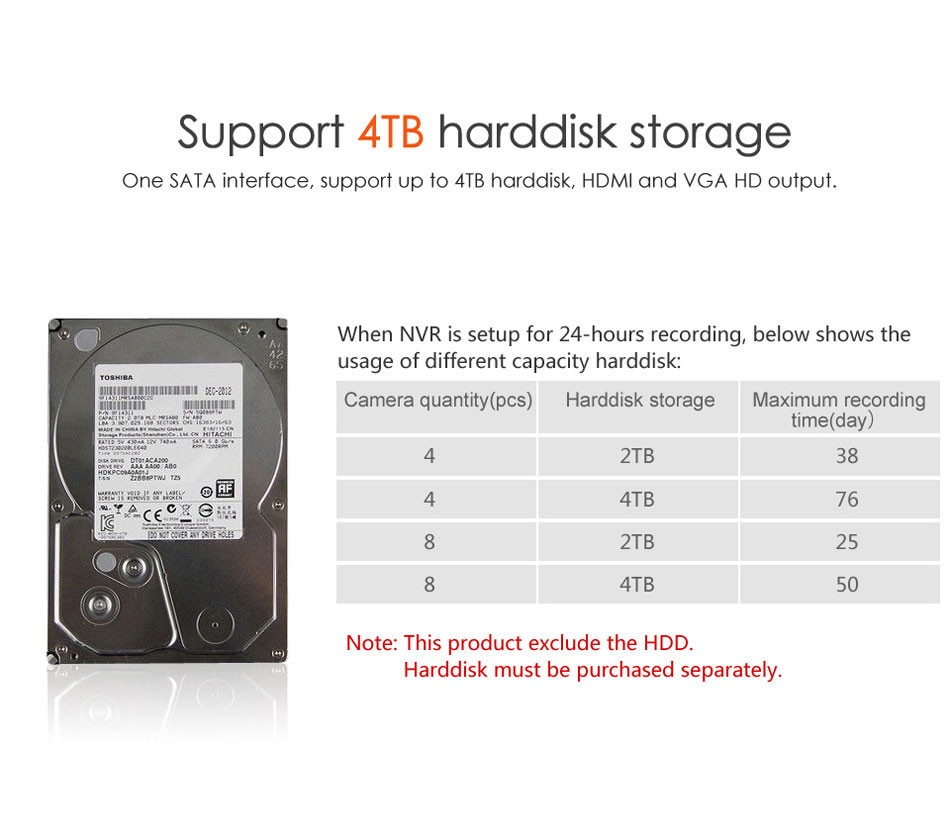

HDD Interface

SATA

2

Max Capacity

no limited

External Interface

Network Interface

2 RJ45 10M/100M/1000M adaptive Ethernet interface

USB

2 USB 2.0 Interfaces

Alarm Input

16CH

Alarm Output

4CH

RS-232

1CH

RS-485

1 RS-485 interface

Size&Weight

Dimensions

520x520x215mm

Size

445x440x89mm

Weight

7Kg(without HDD）

General

Power Supply

110V~220V±10% ±10% 47Hz～63Hz

Working Temperature

 -10℃--＋55℃

Working Humidity

10％--90％

Consumption

20W(without HDD）
