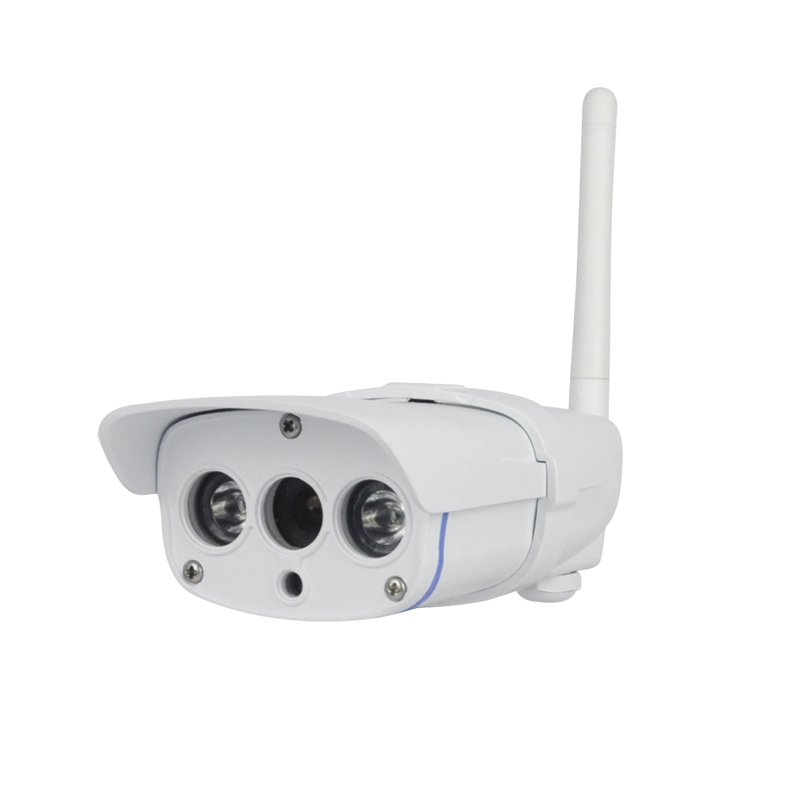

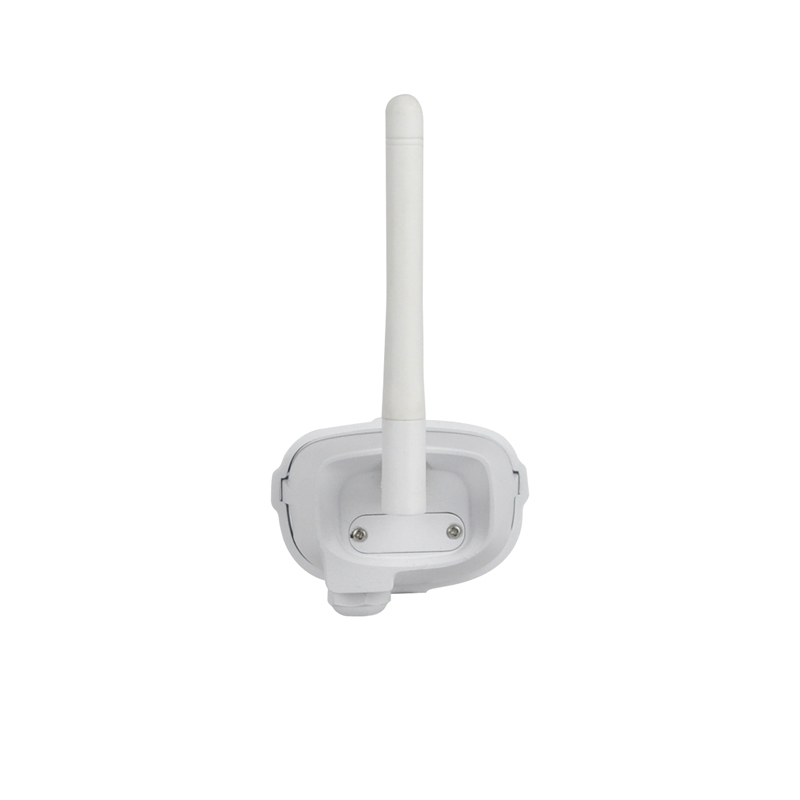

Model C7816WIP

Features

Features

Fashionable design,small size, high rated waterproof grade, visible SD-card slot.

System

O.S

Built in Linux

System security

Three level user authority management

Online visitor

Support 4 online visitors simultaneously

DDNS

 No need domain name, support dynamic IP.

Protocol

ONVIF 2.4 protocol,high interoperability

Processor

Hisilicon processor, built in ARM926 @Max. 440MHz and high-speed video co-processor

Reset

Press 15s to reset back to factory default setting

Collection

Image sensor

1/4inch 720p Progressive Scan CMOS

CMOS

Support AWB, AGC, BLC

Sensor size

3.84mm×2.16mm

SNR

≥39dB

Minimum illumination

0.8Lux/F1.(colourful model),0.3Lux/F1.B&W mode

Lens/View Angle

3.6mm@F1./56.14?

Night vision

Dual IR-CUT Filter auto switch, 2pcs 850nmΦ28Mil LED,15m IR distance

IR control

IR turned on: night vision view enabled, infrared ray, ICR auto detect.

IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode.

Video

Compression format

H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline

Video coding

Multi stream720P/24fps+VGA/30fps+QVGA/30fps+720P @1fsJPEG  capture

Resolution

720p/VGA/QVGA

Bit Rate

CBR/VBR, output bit rate range1284096kbps

Maximum frame rate

25fps

Image adjustment

Brightness, Contrast, Saturation, Chromaticity  are adjustable

Network

Port

10Mbps/100Mbps Adaptive/RJ45 port

Protocol

TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSPP2P,etc

WIFI

WiFi802.11b/g/n

Memory

Storage mode

Local storage/Client storage

Port

External Micro SD/TF card slot, no need disassemble to insert the SD card.

Alarm

Dtection

Motion detection

Action

Image E-mail/FTP image upload/mobile phone client

Physical index

Rated voltage

DC12/2A±0.3V

Power consumption

Rated powerTBW (IR opening )

Working environment

Working temperature:-2070working humidity :100%

Weight

Gross weightnotein kind prevail

Package size

L×W×H

Installation

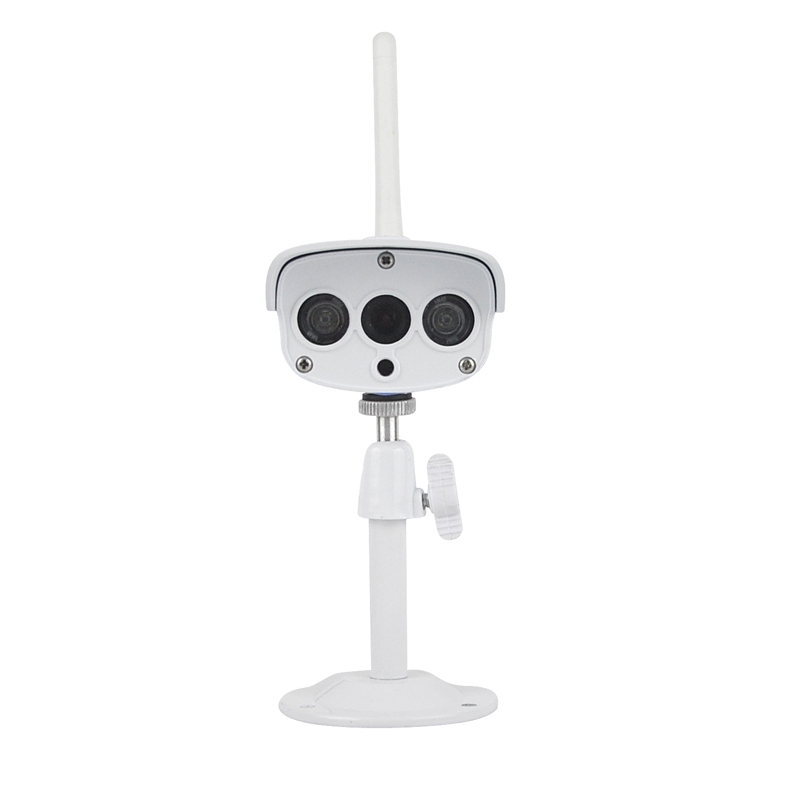

Wall mounted, drop ceiling, freely mounted bracket

IP Rating

IP67 (Waterproof soak)

Note: Only for reference
