กล้องUSB มีอินฟาเรดถ่ายกลางคืนได้ ชัดแบบ HD720P เนียน

กล้องยูเอสบี ขนาดเล็กอัดภาพได้จริง เป็น Video 720P
ถ่ายกลางคืนได้มีอินฟาเรดสองด้วย อัดทางภาพและเสียงคมชัด
รองรับเมมได้ถึง 32G

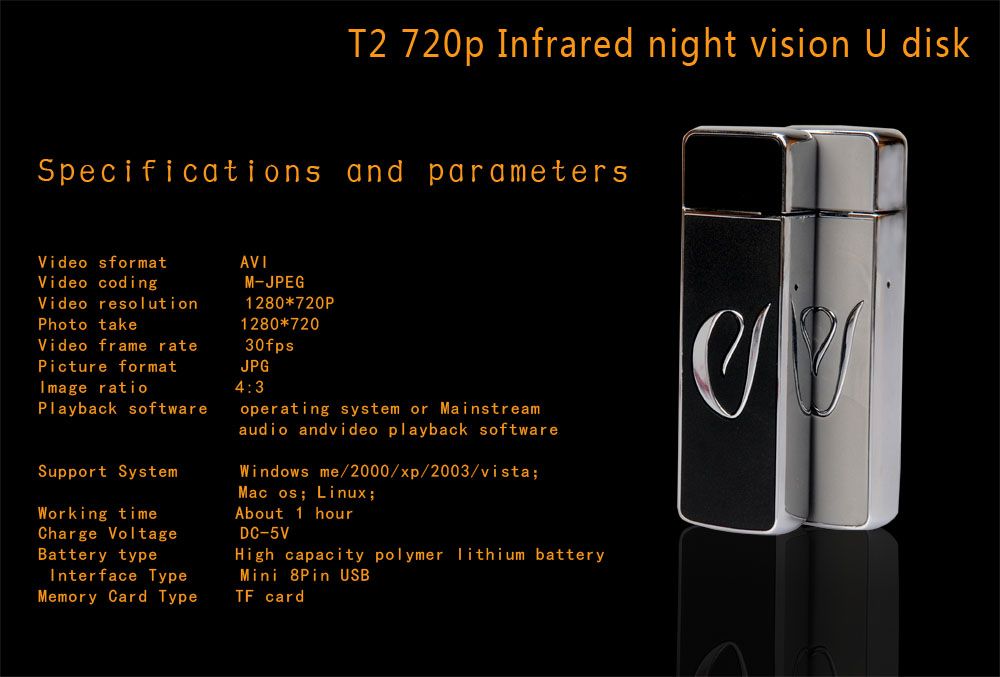

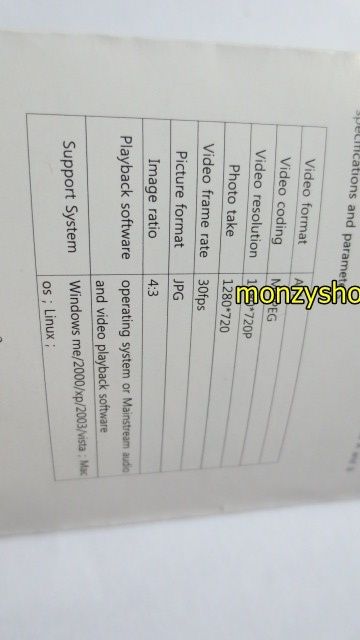

Description:

Video Format: AVI
Video coding: M-JPEG
Video Resolution: 1280 x 720P
Video Frame Rate: 30 fps (maximum)
Audio: stereo
Memory: support external micro-SD/TF card
TF Card Capacity: maximum 32GB (not included)
USB Interface: USB 2.0
Power Source: built-in 260 mAh lithium battery
Working Time: About 80 minutes
Charging voltage: DC-5V
Use it as a regular USB stick: yes
Video recorder + photo camera: yes
Voice recorder: yes
Motion detection: yes
Interface type: USB
Connectors
- TF card slot (micro SD)
- USB port
Buttons
- ON/OFF
- Picture/video mode
- Motion detection
How to turn on device: press ON/OFF for 3 sec and it vibrates
Operating Temperature: 0 ~ 60 degree C
Storage Temperature: - 20 ~ 80 degree C
OS Supported: Windows XP, 2000, Vista, Win 7
Dimensions: 71 x 26 x 11 mm

How to use it ?



1.Starting up:Long press the A button, red and blue lights flashing three times, the blue light enters the standby state.

2 Video record: In standby mode,long press the B button,after the red light flashes three times ,then the light quench ,it will start to video recording ,when we take a video ,you can press the B button once to stop and save the recording.

3 Photos take: In standby mode,short press the B button, the red light flashes slowly ,it will take a photo.

4 Night Vision Video : In standby mode ,short press the A button blue, light flashes three times then quench, turn on night vision and start recording ,during the recording long press the A button ,red light flashes three times,then the light quench , closed the night visual and save night vision video.

5 Recording while charging : the machine in standby mode , you need just plug the power ,then you can recording while charging, under this state , unplug the power , after the red light flashes three times , red light will quench ,then said that the machine is turned off and the video is saved automatically .

6 Turn off: Long press A button, the red light flashes three times then quench, which means that the machine is turned off.

7.U disk mode : In the shutdown mode ,made the machine USB connection to your computer , find the removable disk , you can read video files.

8 Charging: When the machine turned off , connect the USB to the computer , or can be connected to 220V charger for charging , red and blue lights will flashing when charging ,when fully charged ,red light will always bright.

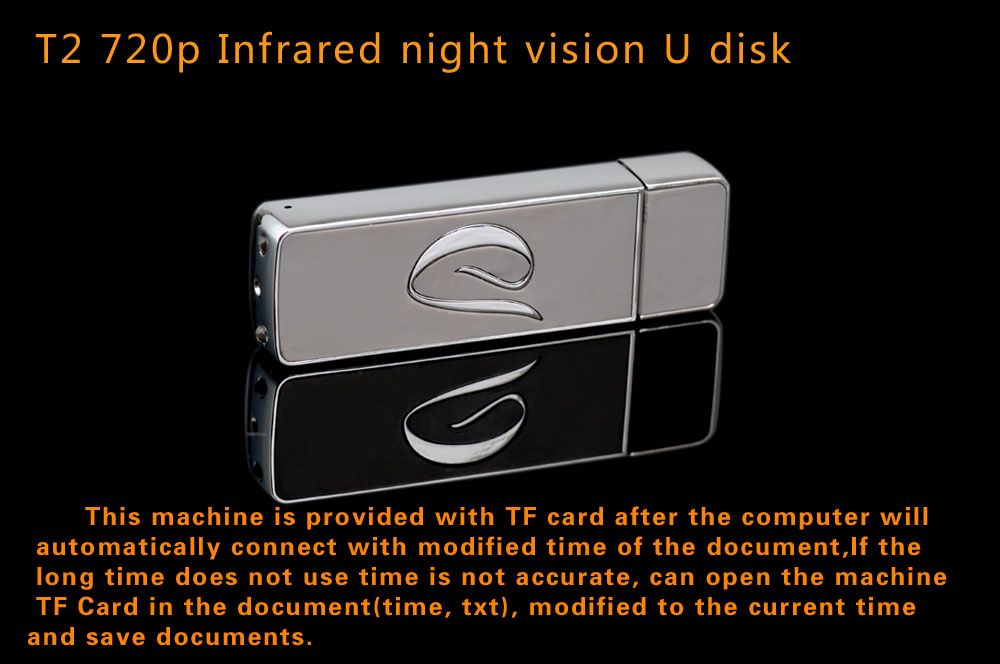

9 Modified:After you install TF card,if you connect this machine to the computer ,it will turn up a document to the modify time automatically, if a long time not use led to the time is not accurate , you can open the documentation (time, txt) on machine’s TF card , modified to the current time and save the document . Document format is:2014-03-30 12:21:55

Note: This machine maximum support 32G TF card, in any recording condition, as long as the video TF card memory is full, the machine will defaults to loop recording. And the machine defaults to 10 minutes of a video document.

Reset: machine crashes occur in any operating state, press A and B button simultaneously to reset.
